Thermal insulation material


HSR-1000VOUS Thermal Gap Filler返回

    Features and Benefits

    • Thermal conductivity: 1.0 W/m-K

    • Highly conformable, low hardness

    • “Gel-like” modulus

    • Decreased strain

    • Puncture-, shear- and tear-resistant

    • Electrically isolating

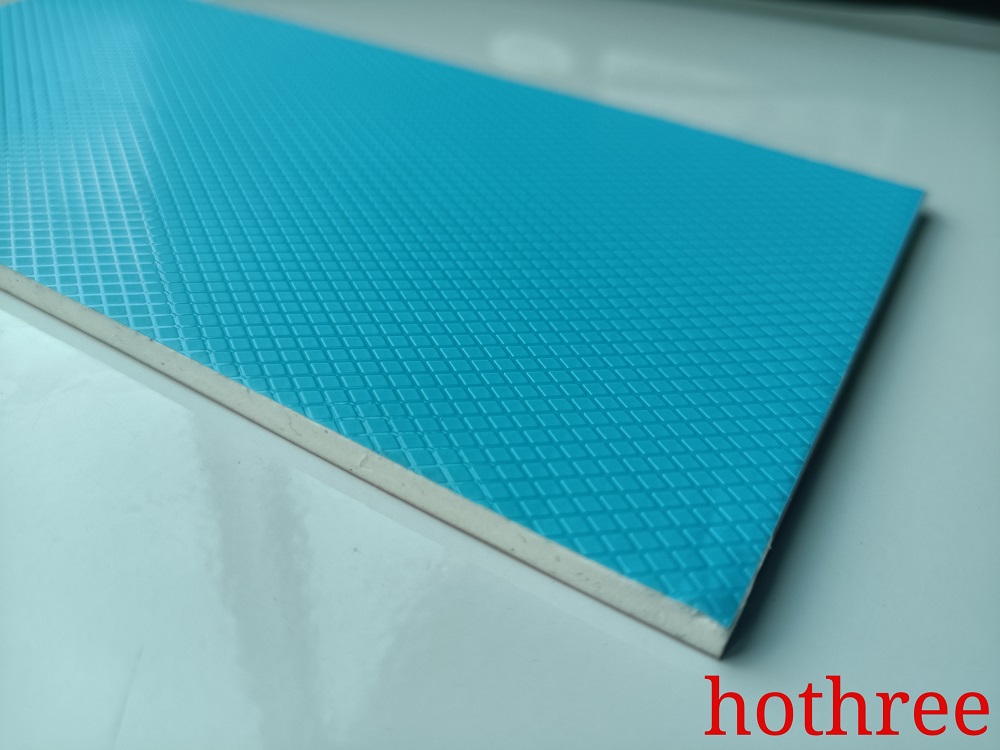

HSR-1000VOUS Thermal Gap Filler

HSR-1000VOUS 1000VOUS(Thermal Conductivity Silicone Sheet) is recommended for applications that require a minimum amount of pressure

on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock

absorbing characteristics. HSR-1000VOUS  is an electrically isolating material, which allows its use in applications requiring

isolation between heat sinks and high-voltage, bare-leaded devices.

HSR-1000VOUS(Thermal Conductive Insulating Silicone Gasket)  Typical Applications Include:

• Telecommunications

• Computers and peripherals

• Power conversion

• Between heat-generating semiconductors or magnetic components and a heat sink

• Areas where heat needs to be transferred to a frame, chassis, or other type of

heat spreader

Configurations Available:

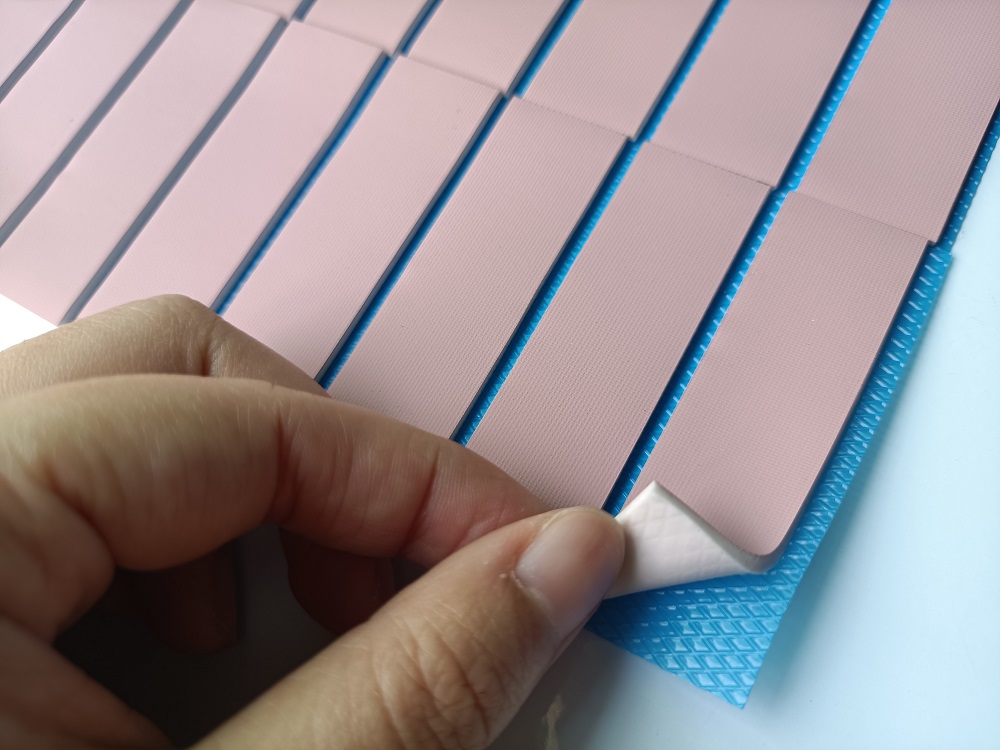

• Sheet form and die-cut parts

It can replace Bergquist GPVOUS,Bergquist GPVOS,Bergquist GPVO,Laird tflex HD300,Laird Tflex300,Laird tflex HD9000
