BERGQUIST HI-FLOW THF 3000UT is  a naturally tacky, thermally conductive phase change

material which is supplied in an easy to use tabulated pad form. In the application the material

undergoes a phase change softening, starting near 52°C. The phase change softening feature

improves handling characteristics prior to a facilitated assembly. At application temperatures and

pressures, BERGQUIST   HI-FLOW 565UT wets out the thermal interfaces producing a very

low  thermal impedance.

BERGQUIST   HI-FLOW 565UT  Typical Applications Include:

• Processor lid to heat sink

• Processor die to lid or heat sink

• FBDIMM to heat spreader

Configurations Available:

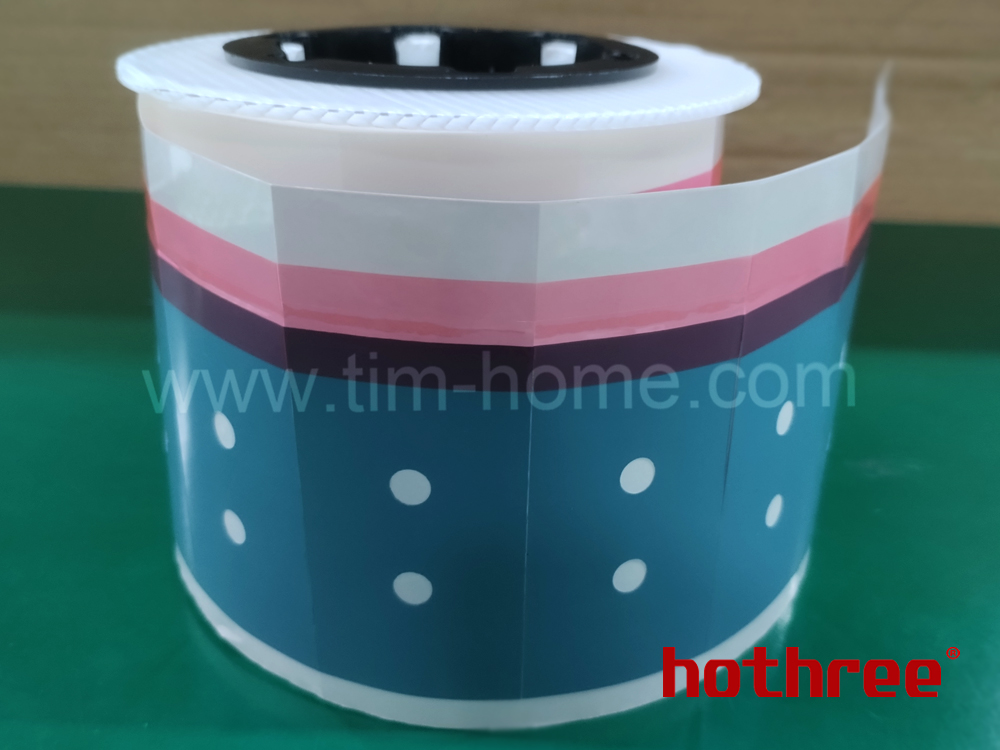

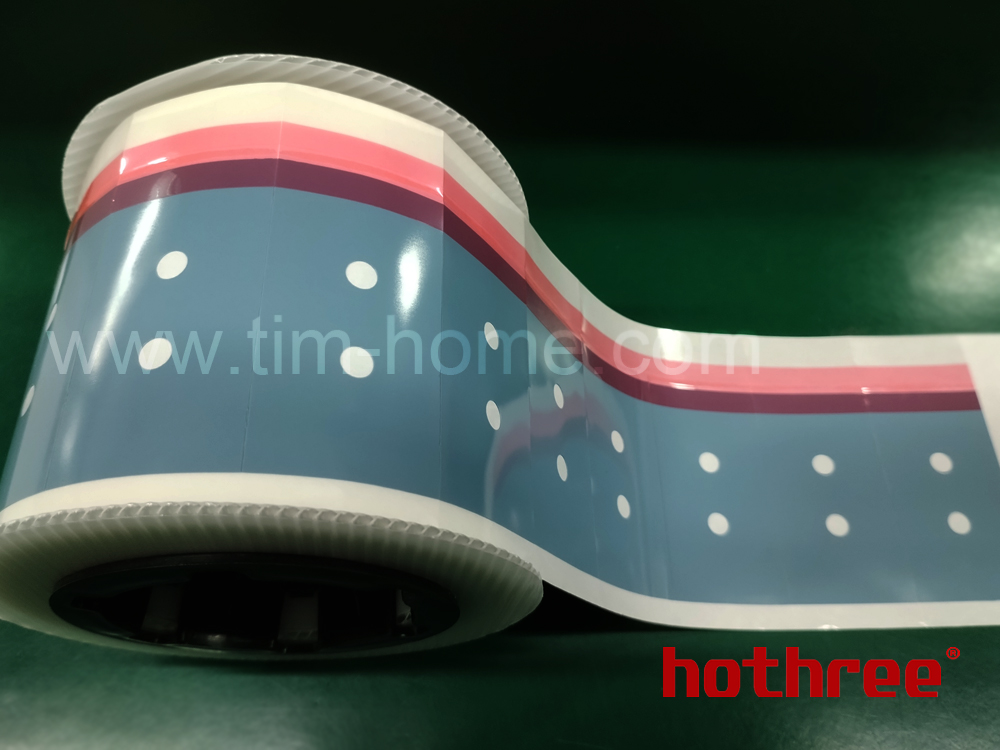

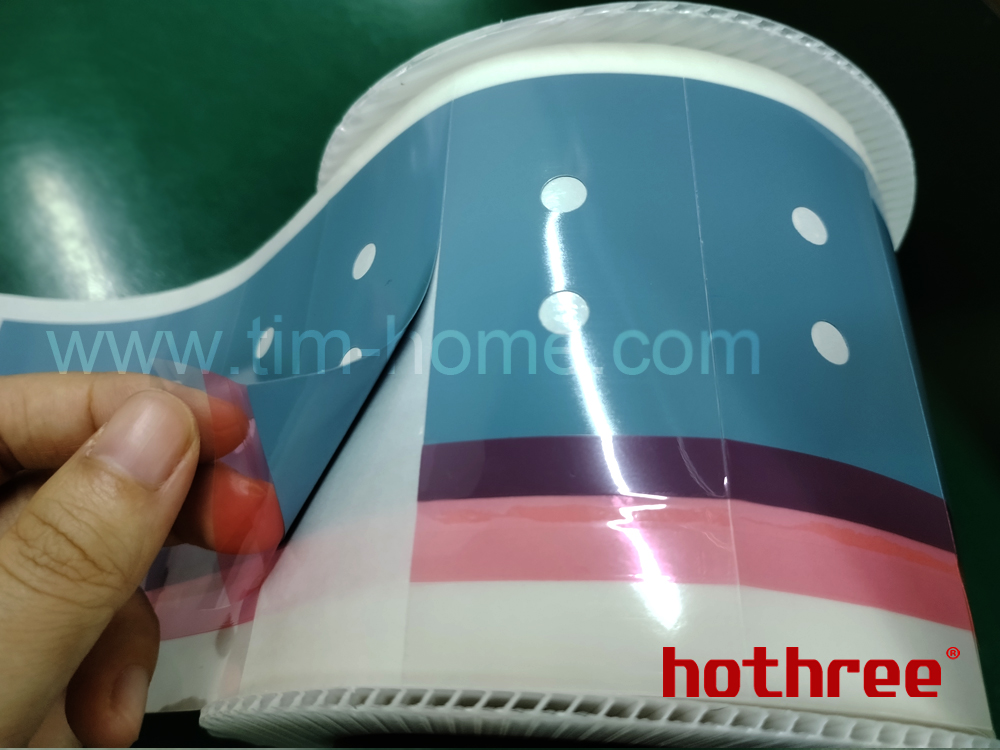

• Tabulated in roll form, kiss-cut parts – no holes

• BERGQUIST HF565UT is limited to a square or rectangular part design.

Dimensional tolerance is +/- 0.020 in. (0.5 mm)
