HSR-1300 Thermal adhesive tapereturn


    Features and Benefits

    • Thermal impedance: 0.41°C-in. 2 /W

    (at 50 psi)

    • Tough dielectric barrier against

    cut-through

    • High performance film

    • Designed to replace ceramic insulators

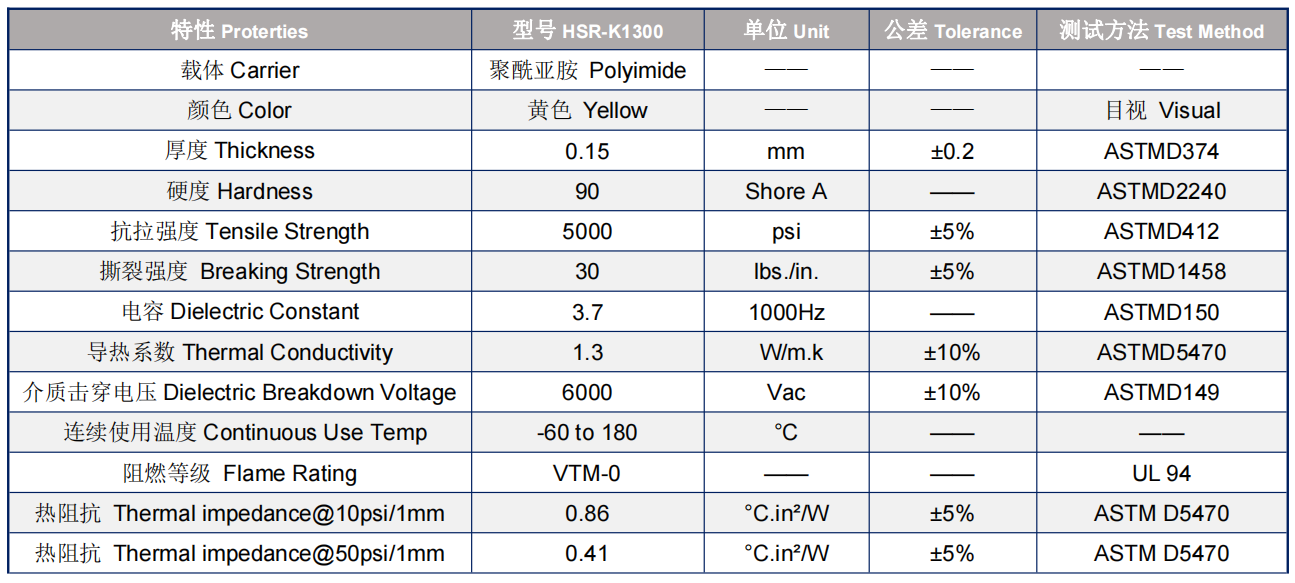

Data download



HSR-1300 Thermally Conductive Insulators is a high performance insulator. It combines special film with a filled silicone rubber.

The result is a product with good cut-through properties and excellent thermal

performance.HSR-1300 Thermal Silicone Insulator is designed to replace ceramic insulators such as beryllium oxide,

boron nitride and alumina. Ceramic insulators are expensive and they break easily. HSR-1300

reduces breakage and costs less than ceramics.

HSR-1300 Thermally Conductive Adhesive Tape Typical Applications Include:

• Power supplies

• Motor controls

• Power semiconductors

Configurations Available:

• Sheet form, die-cut parts and roll form

• With or without pressure sensitive adhesive

It can replace Bergquist SPK10 BERGQUIST SIL PAD TSP K1300,Bergquist SIL PAD K-10,Laird Tflex
