hothree HSR-1600 (Thermally Conductive Silicone Cloth) thermally conductive insulation material is designed

for a wide variety of applications requiring high thermal performance and electrical isolation.

These applications also typically have low mounting pressures for component clamping.

This material combines a smooth and highly compliant surface characteristic with high thermal conductivity.

These features optimize the thermal resistance properties at low pressures.

hothree HSR-1600 (Thermally Conductive Insulators) can be die-cut into various shapes,easy to operate.

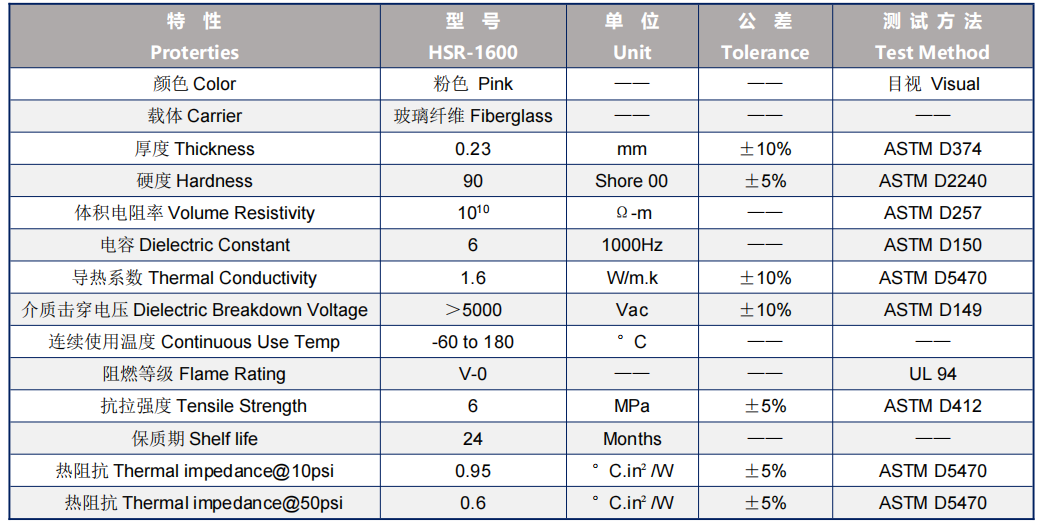

The thermal conductivity can reach 1.6w/m-k and the standard hardness is 90 shoreA.

Thickness is 0.23mm and the standard specification is W300mm*L50m/roll

Produced by our own formula, we can customize the color, hardness and thickness according to the requirements.

hothree HSR-1600 (Thermal Conductivity Silicone Sheet)  Applications

• Automotive electronics

• Motor controls

• Power semiconductors

Configurations Available

• Sheet form, die-cut parts and roll form

• With or without pressure sensitive adhesive

hothree HSR-1600 (Thermal Silicone Insulator material) can replace BERGQUIST SP900S,Sil Pad 900S,SIL PAD TSP 1600S

LAIRD TGARD-K52,LAIRD TGARD 220
