Laird 51K EMI Gaskets return


     Laird Technologies’ Fabric-over-Foam (FoF) 51K EMI gaskets provide excellent EMI shielding performance for customers where EMI issues occur. The 51K Series EMI gaskets are composed of electrically conductive fabric wrapped around a soft urethane foam core. They are supplied with either a conductive or non-conductive pressure sensitive adhesive (PSA), and can be equipped with an Extended Release Liner (ERL) on the adhesive. The 51K is a UL 94V0 rated product that can be created with cross-section profiles such as rectangle, D, C, P, T, knife, bell shapes, and others. The 51K EMI gaskets can be further customized to an application by die-cutting, hole punching, notching, etc.

Data download


 • Fabric-over-Foam gaskets are RoHS compliant

 • UL 94V0

 • Low surface resistivity of < 0.07 Ω/□ provides excellent conductivity

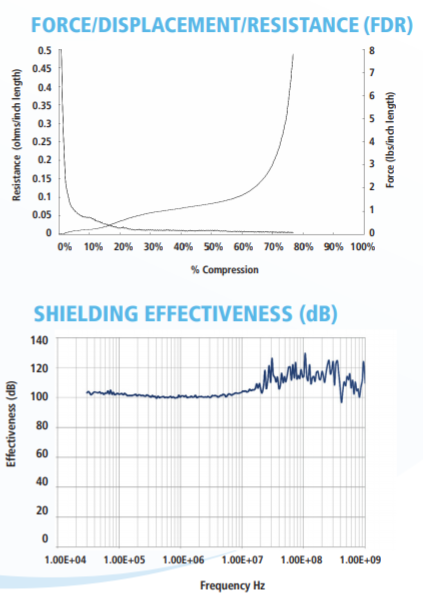

• Shielding effectiveness of >100 dB across a wide spectrum of frequencie

s • Extremely low compression forces allow for use of lighter materials

• Fabric is highly conductive to provide good EMI shielding and grounding

 • Abrasion resistant metallized fabrics show virtually no degradation in electrical performance after 1,000,000 cycles

• Laird Technologies’ proprietary coating prevents fabric fraying and fingerprinting

• Available with conductive or non-conductive PSA • Many cross-section profiles available such as rectangle, D, C, P, T, knife, bell and more

• Profile gaskets can be cut to specified lengths, kiss-cut on release liner, or mitered to form frame configurations

MARKETS • Cabinet applications • LCD and Plasma TV • Medical equipment • Servers • Printers • Laptop computers • Networking equipment • Desktop computers • Telecommunications cabinets
